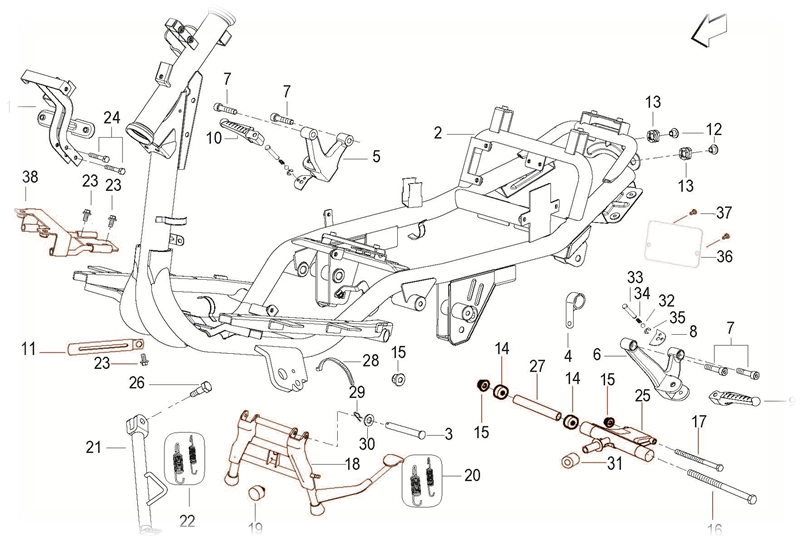

49x-F12_Frame_Assy

Manufacturer:
Benelli
Model:
49x-4s Scooter
Part Number SKU Name Price Add to Cart form
1 59400B470002 FRONT FRAME 9.42 CAD
2 57100B470006 FRAME 302.10 CAD
3 58501A010000 PIN 3.81 CAD
4 45044T430000 HOSE GUIDE 1.87 CAD
5 58311B470000 BRACKET RH 56.27 CAD
6 58211B470000 BRACKET LH 56.27 CAD
7 B02050803064 BOLT M8x30 0.18 CAD
8 58451S010000 FIXING PLATE 0.63 CAD
9 58266S010000 FOOT PEG, RR LH 33.36 CAD
10 58286S010000 FOOT PEG, RR RH 33.36 CAD
