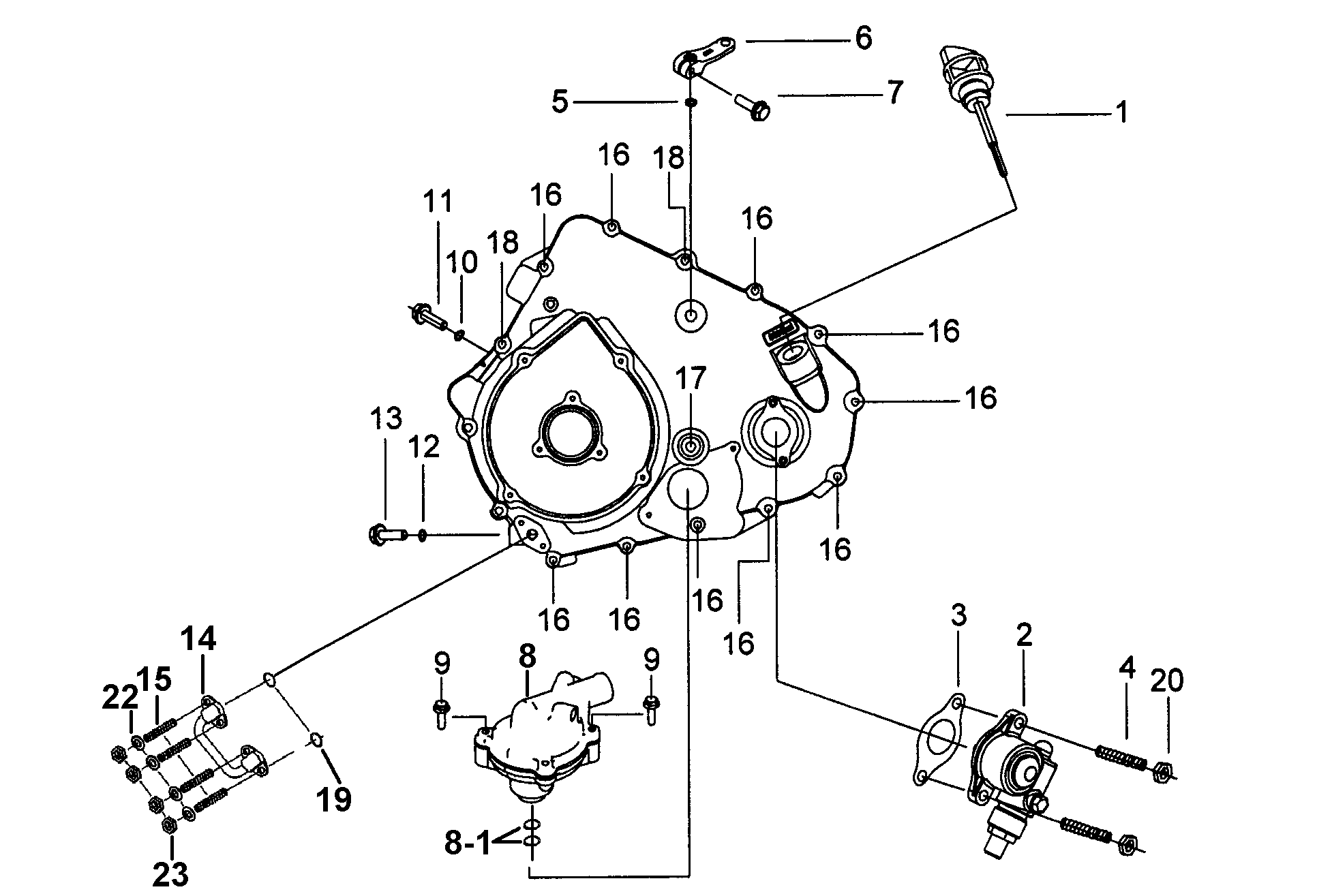

425u-10501_Left_Crankcase_Cover

Manufacturer:
TGB
Model:
425u ATV
Part Number SKU Name Price Add to Cart form
1 400157 OIL GAUGE LEVEL Assy 6.30 CAD
2 924376 SPEEDOMETER GEAR Assy 134.11 CAD
3 924197 GASKET, Speedometer Gear Assy 7.69 CAD
4 S95604 BOLT 1.85 CAD
5 924240 OIL SEAL M12X22X9 2.97 CAD
6 924764 ARM, Gear Shift 44.81 CAD
7 S21604 BOLT, Flange M6X1.0X20L 1.49 CAD
8 01 924362 O-RING 9.82 CAD
8 925032 WATER PUMP Comp 151.68 CAD
9 S24626 BOLT, Flange M6X48 1.30 CAD
