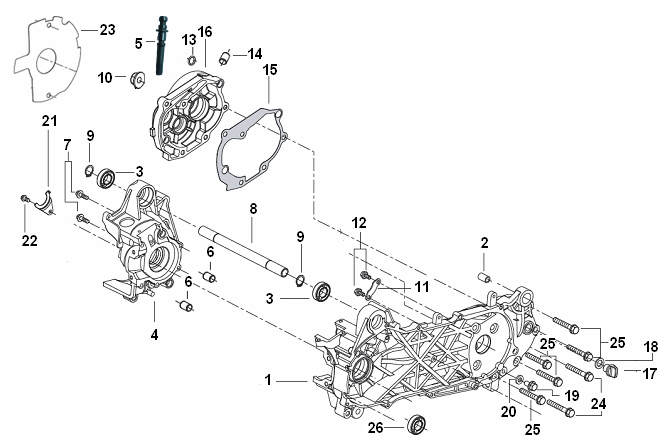

Fact50-E02_Crankcase_Assy

Manufacturer:
Keeway
Model:
Fact50-2s Scooter
Part Number SKU Name Price Add to Cart form
1 206200.045000 CRANKCASE,LH 201.21 CAD
2 26108G02F000 BUSHING, Engine Mount 4.18 CAD
3 B12016000303 BEARING, 6003-P6 13.15 CAD
4a 26211B09F001 CRANKCASE,RH 66.35 CAD
4b 159051070010 CRANKCASE,RH 66.35 CAD
5 26142G02F000 PIN, Anchor Brake Shoe 4.18 CAD
6 26123G02F000 DOWEL PIN 0.94 CAD
7 B01070603564 BOLT, Pan Head M6x35 CHROME 1.99 CAD
8 26109B09F000 AXLE, Engine Mount 10.55 CAD
9 B08010001700 CIRCLIP, 17 each 0.94 CAD
