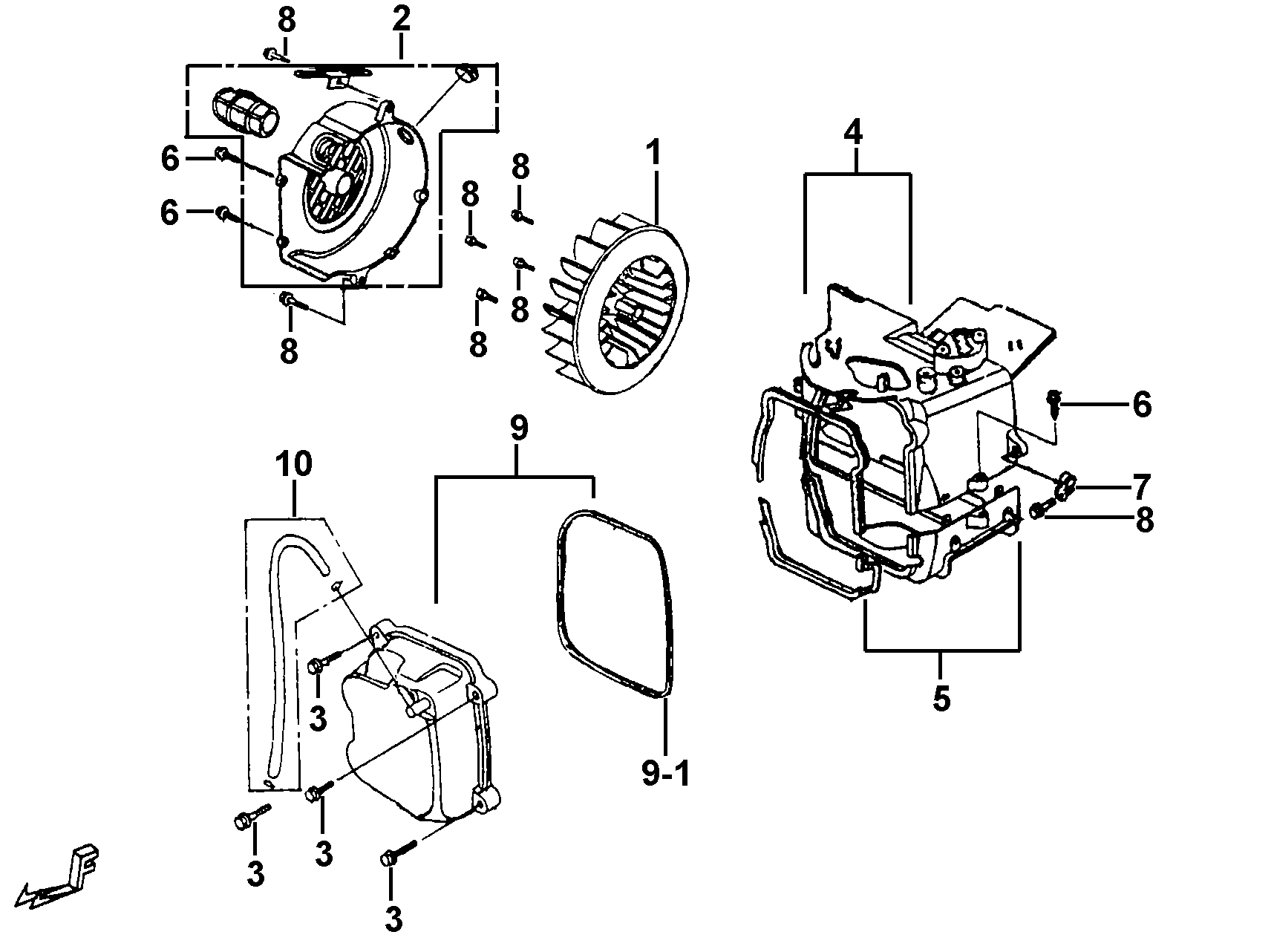

Laser150-08_Cooling_Fan-Shroud-Cylinder_Head_Cover

Manufacturer:
TGB
Model:
Laser150 Scooter
Part Number SKU Name Price Add to Cart form
1 400188 COOLING FAN 14.92 CAD
2 400167 COVER Assy, FAN 16.68 CAD
3 S24613 BOLT, Flange 1.49 CAD
4 400171 SHROUD Comp A 21.02 CAD
5 400175 SHROUD Assy B 24.41 CAD
6 S14502 BOLT,TAPPING 1.49 CAD
7 400180 CLAMP, DRAIN TUBE 1.67 CAD
8 S24605 BOLT, Flange M6X25 1.49 CAD
9 01 400183 WASHER, Cylinder Head 8.71 CAD
9 400437 COVER Comp, Cylinder Head 54.89 CAD
